11-inch Multi Media Station for Fiat Ducato 8 with Apple CarPlay Wireless and Android Auto support.

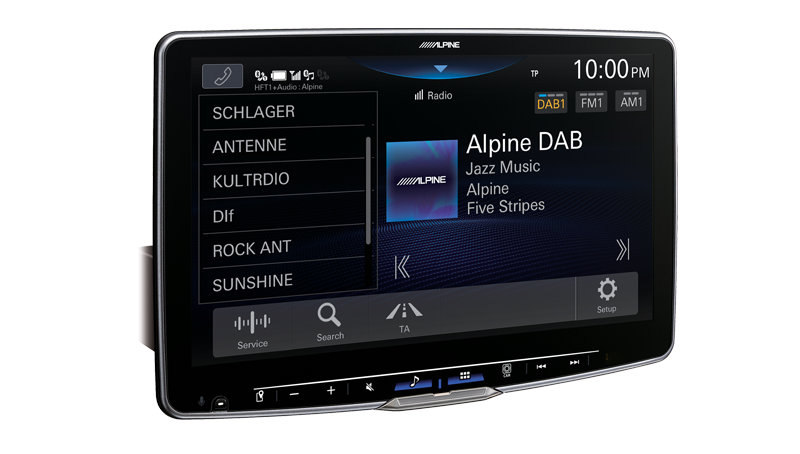

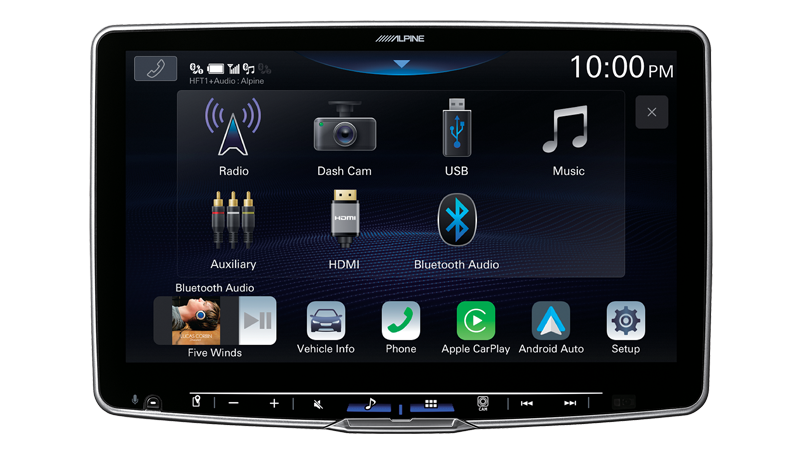

The iLX-F115D Alpine Halo11 is the second generation of Alpine’s world-famous Halo product line, featuring a 11-inch high-resolution WXGA touch-screen and is compatible with virtually any vehicle with 1DIN or 2DIN installation dock.

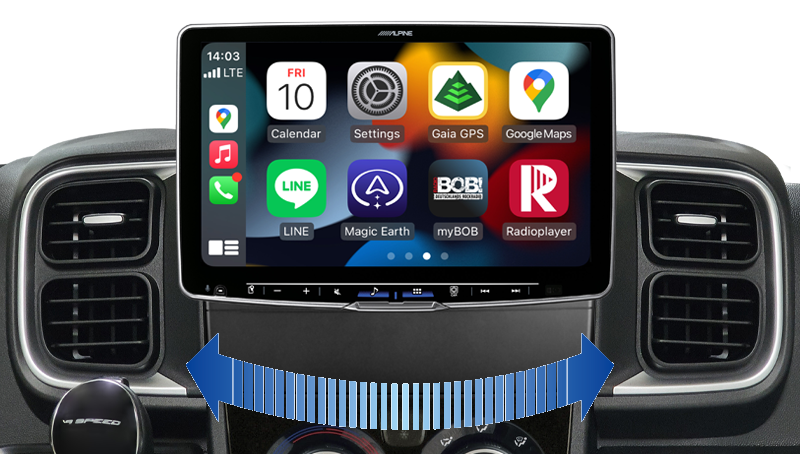

• The super-slim display appears to simply hover over your dashboard and can be adjusted in various ways for the best position. In this version the display can be tilted up and down, as well as swivelled to the left and right to allow driver and passenger excellent visibility of the screen.
• Enjoy wireless Apple CarPlay and Android Auto (wired) compatibility, DAB+ digital radio, USB video playback, Hi-Res Audio playback, Bluetooth hands-free and audio streaming and much more with this amazing Head Unit.
• Bring exceptionally good sound quality into your vehicle: the Alpine Halo11 is the world’s first Head Unit featuring a built-in Class-D amplifier and has a wide array of professional sound tuning functions, such as 2-way X-overs, a Parametric EQ, digital time correction and much more.

Features

General

• 4x 50 Watts Class-D High Power Amplifier
• 11-inch Capacitive Touch-Screen WXGA Display (1280 x 720p)
• Display angle adjustable after installation

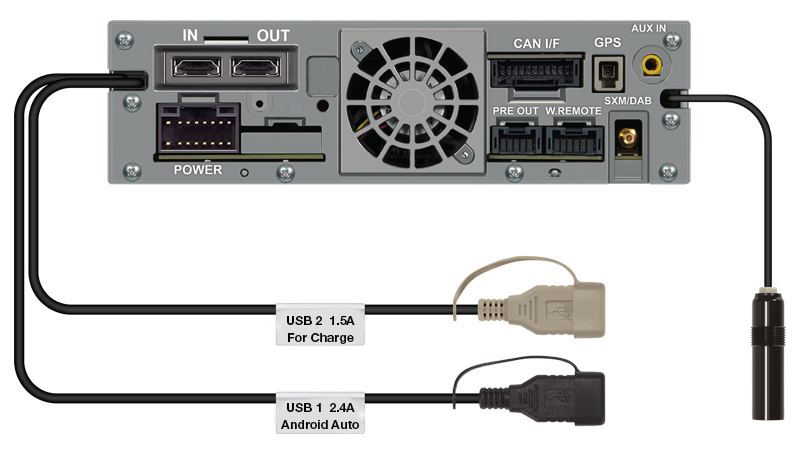

• 3 PreOuts (6 V, Front / Rear / Subwoofer)
• 1 A/V AUX Input (3.5 mm micro jack)
• 1 HDMI input / 1 HDMI output
• 2 USB Ports (1x USB data port / 1x USB charging)
• Steering Wheel Remote Control Ready
• Vehicle Display Interface Ready (UART connection)
• Remote Control Ready
• 2x Camera Connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch box
• Camera Distance Guides (adjustable)
• Live Contrast Adjustment
• Menu Language: 24 Languages
• Auto Dimmer
• Anti-theft security code
• Engine Start-Stop unaffected

Navigation Function

• Online navigation capability with Apple CarPlay and Android Auto compatible navigation apps
• Includes GPS / Glonass enabled navigation antenna

Radio / DAB Tuner

• Preset Stations (FM: 3x12 / DAB: 3x12 / AM: 2x12)
• Memory: Auto Memory
• Seek Mode: Local, DX, Pre-Set, Service
• RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
• DAB+/DMB Supported
• DAB+ Slideshow Service
• DLS (Dynamic Label Service)
• DAB Service Following
• RDS Fallback (where available)
• Auto Ensemble/Service Memory
• Service Search Function
• PTY Search Function
• Alphabet Search Function

USB Media Connection

• 2x USB cable included
• USB port 1: data port / USB port 2: charging port
• Music Playback: FLAC, MP3, WMA, AAC, WAV, APE compatible
• Video Playback: MP4, MOV, FLV, MKV compatible
• Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
• Various search functions included

BLUETOOTH®

• BLUETOOTH® Version: Bluetooth V4.2
• Output Power: +4 dBm Max. (Power class 2)
• HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• HSP (Head Set Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (Audio/Video Remote Control Profile)
• SPP (Serial Port Profile)
• Supports LDAC Audio Codec

Works with iPhone®

• Compatible with iPhones and iPods featuring a lightning connector
• Various search functions and Album Artwork Display
• Battery Charging

Sound Tuning

• Subwoofer Level Adjustment: 0 to +15
• Subwoofer Phase Setting: 0° or 180°
• BASS ENGINE SQ: 5 Modes, Level 0 to +6

Maker Model Model year

Fiat Ducato III Version 8 2022 →

Note:* the iLX-F115DU8 is only compatible with vehicles featuring radio preparation or open dash (no radio equipped).
