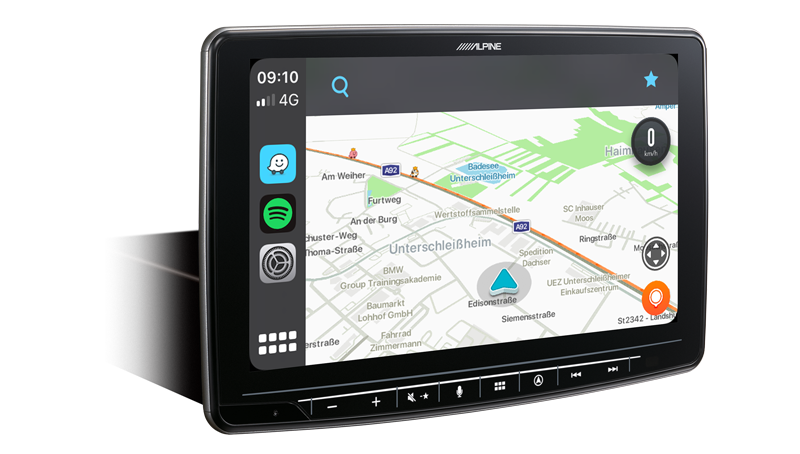

Navigation system with 9-inch touchscreen for Ducato 3, Jumper 2 and Boxer 2, 1-DIN installation housing, DAB+, Apple CarPlay and Android Auto support and more.

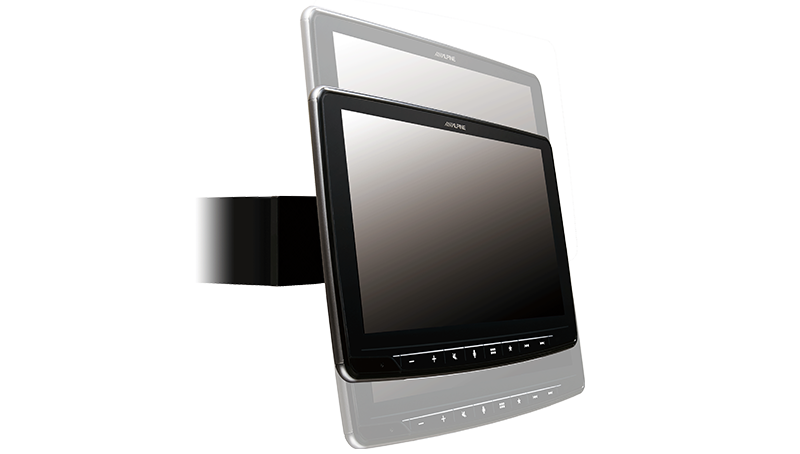

The slim 9-inch screen can be adjusted for tilt angle, height and depth before installation, and with integrated ambient lighting, it blends in very elegantly with any vehicle.

• With Alpine Halo9 Navi, you can experience the best navigation, DAB+ digital radio, USB video playback, Bluetooth hands-free and audio streaming.
• In addition, you can also use the online navigations of Apple Car Play or Android Auto. *With the Alpine Halo9, DAB+ digital radio, USB video playback, Bluetooth hands-free and audio streaming, you can experience a new kind of design and entertainment in the car. *This model comes with pre-installed motorhome and truck software incl. park4night

Features & Specifications

FEATURES

Tuner

• Memory Presets: Preset Stations (FM: 12 / MW: 6 / LW: 6)
• Memory: Auto Memory
• Seek Mode: Local / DX Selection

RDS

• RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT

DAB Tuner

• DAB+ Tuner Built-in
• DAB+/DMB Supported
• DAB+ Slideshow Service
• DLS (Dynamic Label Service)
• DAB Service Following
• RDS Fallback (where available)
• Service Preset: 18 Preset Memory
• Auto Ensemble/Service Memory
• Service Search Function
• PTY Search Function
• Alphabet Search Function
• Antenna Power Supply Selection

BLUETOOTH®

• Built-in BLUETOOTH® Module
• Wide Band Speech Technology
• HFP (Hands-Free Profile) Compatible
• Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
• Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
• Connection: SSP (Simple Secure Pairing) Supported
• Individual Profile Connection Hands Free Phone and Music Streaming
• Phone Book: Phone Book Synchronization
• Speed Dial: 4 Preset Memory (per phone)
• Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
• Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
• Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
• Signal Strength Indicator
• Battery Level Indicator
• Menu Language Selection: 24 Languages
• Firmware Updatable
• Microphone Included

Made for iPod® / iPhone®

• Connection: KCU-471i Required (Sold separately)
• Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook
• Alphabet Search
• Artwork Display
• Direct Up / Down: Playlist / Artist / Album / Genre / Composer
• M.I.X. (Shuffle) Play: Song, Albums, All
• Repeat
• Battery Charging


Connectivity

• Works with Apple CarPlay (requires CarPlay enabled iPhone)

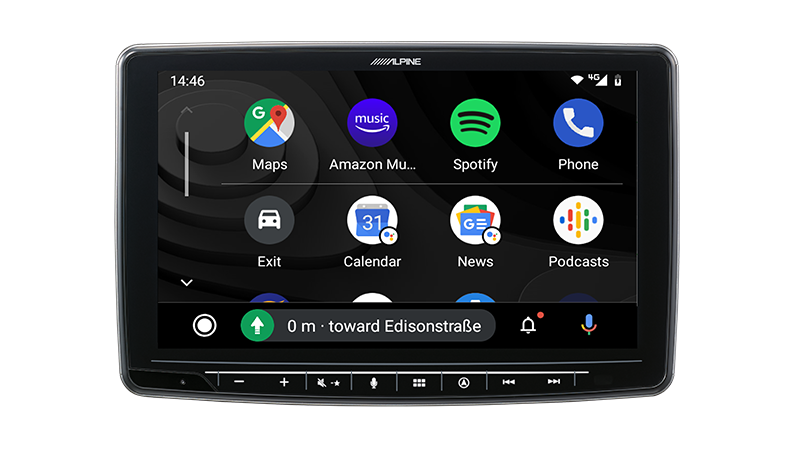

• Works with Android Auto (Requires Android Auto enabled smartphone)

Navigation Functions

• Map Coverage: 46 Countries (Western and Eastern Europe) by TomTom maps
• 3 years free-of-charge map update
• Pre-installed trucking software and motorhome profiles
• Map Coverage: 48 Countries (Western and Eastern Europe)
• Menu Language: 29 Languages
• Voice Guidance Language: 29 Languages for Voice Guidance, 15 Languages for Text-to-Speech (TTS)
• Advanced Address Search
• Post Code Search
• Free Form Search
• Partial Name Search
• Advanced POI Functions
• Smart Routes: Smart Routes using historic traffic patterns
• Advanced Route Planning
• Eco Route Search
• 7 Alternative Route Recommendation
• Advanced TMC Mode
• Map Display Mode: 2D Heading Up, 2D North Up, 3D
• 3D City Mode: 3D Building/Icon Display
• Elevation Map Display: 3D maps with elevation mode
• 3D Motorway Junction View: Junction View with Sign Post
• Drive Lane Suggestion
• Tunnel Mode
• Highway Mode
• Voice Guidance Mixing
• Text-to-Speech
• Direct Phone Call from POI data
• 3 Positioning Sensors: GPS / Glonass, Gyroscope, Vehicle Speed Pulse

USB Media Connection

• USB Connection: USB Extension Cable Included
• Music Playback: FLAC/MP3/WMA/AAC compatible
• Video Playback: MP4 compatible
• File / Folder Name Search
• Tag Info Search
• Folder Up / Down
• M.I.X. Random Play
• Repeat

Sound Tuning

• Bass Engine SQ
• Bass Engine™ Pro
• Subwoofer Level Adjustment
• Subwoofer Phase Select
• 4V High Voltage PreOut
• Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
• Dual HD EQ (9-band Parametric Equalizer front/rear)
• 6 Channel Digital Time Correction
• Digital Crossover Setting
• Customized Sound Setting by Car Type
• MediaXpander HD
• Application Volume Level Setting
• Sound Setting Data Download
• Easy, Step-by-Step Sound Customization
• Alpine TuneIt App ready

General

• Power Output: 4 x 50 W High Power Amplifier
• Advanced Power IC
• Display: 9-inch Capacitive WVGA High Resolution Display
• White LED Backlighting System
• Control Type: Touch, Drag, Flick
• My Favorites Function
• Automatic Setting Change for 2 Users
• AUX-In: 1 A/V AUX Input (3.5mm micro jack)
• Steering Wheel Remote Control Function
• Vehicle Display Interface Ready (UART connection)

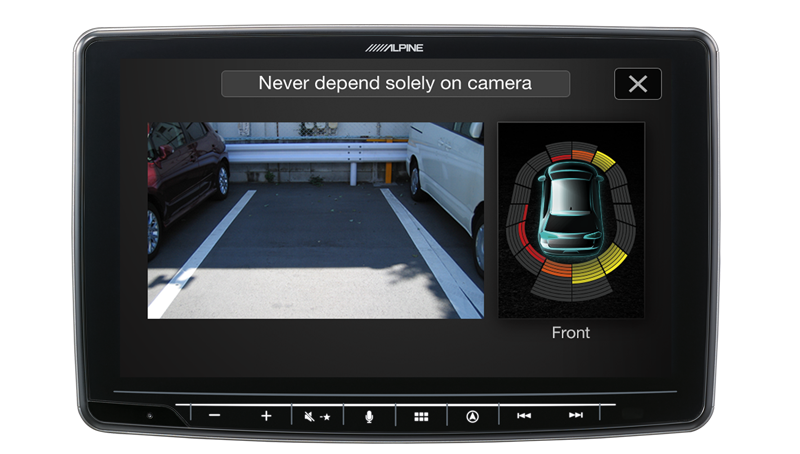

• Camera Connection & Built-in Controls for Multi-View Cameras
• Camera Guide Line Adjustment
• Rearview Camera Display Automatic Boot-up
• Menu Language: 24 Languages (for AV / Bluetooth),
• Clock
• Auto Dimmer
• Anti-theft security code
• Firmware Updatable
• Power Antenna Lead
• Remote Turn-On
• HDMI Input (Alpine Special HDMI connector required)
• Engine Start-Stop unaffected

General

• Power Requirement: 14.4 V. DC (11-16V allowable)
• Pre Output Voltage (Before Clipping): 4 V / 10k ohms
• Maximum Mounting Angle: 30°

Dimensions

• Din Size: 1DIN chassis and 9” Capacitive Touch Screen
• Chassis Size (W x H x D) mm: 178 x 50 x 160 mm
• Nose Piece Size (W x H x D) mm: 235.2 x 152.2 x 19 mm

Compatible with

Manufacturer Model Year

• Fiat Ducato III (250) 06/2006 → → 2011-2014
• Fiat Ducato III Facelift (250) 2011-2014
• Fiat Ducato III (290) 2014 →
• Citroën Jumper II (250) 06/2006 →
• Peugeot Boxer II (250) 06/2006 →

Note: Depending on the vehicle configuration, additional installation parts may be necessary.

• Only compatible for vehicles with radio preparation and/or original 1-DIN radio with ISO/miniISO connection.

Errors and omissions excepted
